• Wheels, 17" x 8" (43.2 cm x 20.3 cm) Bright Silver painted aluminum
• Tires, 255/70R17 all-season, blackwall
• Tire, spare 255/70R17 all-season, blackwall (Included with (QBN) 255/70R17 all-season, blackwall tires.)
• Tire carrier lock, keyed cylinder lock that utilizes same key as ignition and door
• Bumper, front chrome
• Bumper, rear chrome
• CornerStep, rear bumper
• Recovery hooks, front, frame-mounted, black (Included with 4WD models only.)
• Cargo tie downs (12), fixed rated at 500 lbs per corner
• Grille (Chrome bars with high gloss Black mesh inserts.)
• Headlamps, LED reflector with LED signature Daytime Running Lamps
• Lamps, cargo area, cab mounted integrated with center high mount stop lamp, with switch in bank on left side of steering wheel
• Taillamps, with incandescent tail, stop and reverse lights
• Mirrors, outside heated power-adjustable (When (PQB) Safety Package is ordered, includes Perimeter Lighting.)
• Mirror caps, chrome (Not available with (DPO) trailering mirrors.)
• Glass, deep-tinted
• Door handles, body-color
• Tailgate and bed rail protection cap, top
• Tailgate, locking utilizes same key as ignition and door (Upgraded to (QT5) EZ Lift power lock and release tailgate when (PCL) Convenience Package is ordered.)
• Tailgate, gate function manual with EZ Lift

• Audio system, Chevrolet Infotainment 3 system 8" diagonal color touchscreen, AM/FM stereo. Additional features for compatible phones include: Bluetooth® audio streaming for 2 active devices, voice command pass-through to phone, Apple CarPlay and Android Auto capable.
• Audio system feature, 6-speaker system
• Bluetooth® for phone, connectivity to vehicle infotainment system
• 4G LTE Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)

• Seats, front 40/20/40 split-bench with covered armrest storage (Not available with (PCL) Convenience Package.)
• Seat trim, Cloth
• Seat adjuster, driver 4-way manual
• Seat adjuster, passenger 4-way manual
• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Floor covering, color-keyed carpeting
• Floor mats, rubberized vinyl, front (Deleted when LPO floor liners are ordered.)
• Floor mats, rubberized vinyl rear (Deleted when LPO floor liners are ordered.)
• Steering wheel, urethane
• Steering wheel audio controls
• Steering column, Tilt-Wheel, manual with wheel locking security feature
• Driver Information Center, 4.2" diagonal color display includes driver personalization
• Exterior Temperature Display located in radio display
• Compass located in instrument cluster
• Rear Seat Reminder
• Window, power front, drivers express up/down
• Window, power front, passenger express down
• Windows, power rear, express down
• Door locks, power
• Remote Keyless Entry, with 2 transmitters
• Cruise control, electronic with set and resume speed, steering wheel-mounted
• Power outlet, front auxiliary, 12-volt
• USB ports, 2 (first row) located on instrument panel
• Air conditioning, single-zone manual, semi-automatic
• Air vents, rear, heating/cooling
• Mirror, inside rearview, manual tilt
• Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted
• Chevrolet Connected Access capable (Subject to terms. See onstar.com or dealer for details.)

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Airbags, dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar and Chevrolet connected services capable (Terms and limitations apply. See onstar.com or dealer for details.)
• Rear Vision Camera
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System with Tire Fill Alert (does not apply to spare tire)

ADVANCED TRAILERING PACKAGE

• includes (PZ8) Hitch Guidance with Hitch View
• (U1D) Advanced Trailering System and (JL1) trailer brake controller

CONVENIENCE PACKAGE II

• includes (UG1) Universal Home Remote
• (A48) rear sliding power window
• (KI4) 120-volt power outlet
• (KC9) 120-volt bed-mounted power outlet
• (IOS) Chevrolet Infotainment System with 8" diagonal color touch-screen with (MCR) USB ports
• SiriusXM with 360L
• (U2L) HD radio and (UVB) HD Rear Vision Camera Crew Cab models include (R7O) Cloth Rear Seat with Storage Package.)

LEATHER PACKAGE

• Crew Cab models include (SNR) Up-level Rear Seat with Storage Package.)

MAX TRAILERING PACKAGE

• includes 9.76" rear axle
• enhanced cooling radiator
• revised shock tuning for increased control
• heavier duty rear springs
• increased RGAWR and (KW5) 220-amp alternator Includes (GU6) 3.42 axle ratio and (JL1) trailer brake controller.

SAFETY PACKAGE

• includes (UD5) Front and Rear Park Assist
• (UKC) Lane Change Alert with Side Blind Zone Alert and (UFG) Rear Cross Traffic Alert (Includes Perimeter Lighting.

LT PREFERRED EQUIPMENT GROUP

• includes standard equipment

TRAILER CAMERA PACKAGE

• includes (UVN) Bed View Camera which provides Two Trailer Camera Provisions Includes (U1D) Advanced Trailering System.)

BED PROTECTION PACKAGE

• includes (B1J) wheel house liners and (CGN) Chevytec spray-on bedliner

TRAILER TIRE PRESSURE MONITOR SENSORS

• includes set of 4 sensors. Sensor functionality requires (U1D) In-vehicle Trailering App to be ordered with the vehicle and installed by the factory. Sensors will be shipped loose with the truck and will need to be installed on trailer by customer. System is capable of monitoring up to 6 wheels. Additional or replacement sensors are available through GM Accessories

• All-Star Edition: Trailering Package; Heavy-Duty Rear Locking Differential
• Advanced Trailering Package: Advanced Trailering System; Hitch Guidance with Hitch View; Advanced Trailering System; Integrated Trailer Brake Controller; Hitch Guidance with Hitch View
• Convenience Package: LED Cargo Area Lighting; Remote Vehicle Starter System; 10-Way Power Driver Seat with Lumbar; Electric Rear-Window Defogger; Dual-Zone Automatic Climate Control; Leather Wrapped Steering Wheel; Manual Tilt/telescoping Steering Column; EZ Lift Power Lock and Release Tailgate; Heated Steering Wheel; Rear Dual USB Charging-Only Ports; Keyless Open and Start; Electrical Lock Control Steering Column; Heated Driver and Front Outboard Passenger Seats; 40/20/40 Front Split-Bench Seat; 12-Volt Rear Auxiliary Power Outlet
• Convenience Package II: HD Rear Vision Camera; Power Sliding Rear Window with Rear Defogger; SiriusXM with 360L; 120-Volt Instrument Panel Power Outlet; Chevrolet Infotainment 3 Plus System Radio; 2 USB Ports; Universal Home Remote; HD Radio; HD Rear Vision Camera; Power Sliding Rear Window with Rear Defogger; SiriusXM with 360L; 120-Volt Instrument Panel Power Outlet; Cloth Rear Seat with Storage Package; Chevrolet Infotainment 3 Plus System Radio; 2 USB Ports; Universal Home Remote; HD Radio
• Leather Package: Perforated Leather-Appointed Front Seat Trim; Up-Level Rear Seat with Storage Package
• Max Trailering Package: Increased RGAWR; Enhanced Cooling Radiator; 220 Amps Alternator; 3.42 Rear Axle Ratio; Heavier Duty Rear Springs; 17" X 8" Full-Size Steel Spare; Integrated Trailer Brake Controller; 7
• 300 lbs (3
• 311 Kgs) GVWR
• Safety Package: Perimeter Lighting; Ultrasonic Front and Rear Park Assist; Rear Cross Traffic Alert; Lane Change Alert with Side Blind Zone Alert
• Preferred Equipment Group 1LT: Rear Vision Camera; Rear 60/40 Folding Bench Seat (folds Up); Cloth Seat Trim; Bluetooth® For Phone; 2 USB Ports (first Row); Compass; 17" X 8" Bright Silver Painted Aluminum Wheels; 40/20/40 Front Split Bench Seat; 4.2" Diagonal Color Display Driver Info Center; Urethane Steering Wheel; Steering Wheel Audio Controls; 255/70R17 AS BW Tires; Single-Zone Manual/semi-Automatic Air Conditioning; Color-Keyed Carpeting Floor Covering; OnStar and Chevrolet Connected Services Capable; Power Front Windows with Passenger Express Down; Remote Keyless Entry; Front Rubberized Vinyl Floor Mats; Rear Rubberized-Vinyl Floor Mats; 4-Way Manual Driver Seat Adjuster; Deep-Tinted Glass; Chrome Mirror Caps; Chevrolet Infotainment 3 System Radio; Steering Wheel Mounted Electronic Cruise Control; Power Rear Windows with Express Down; Manual Tilt-Wheel Steering Column; Single-Speed Transfer Case; Chrome Grille; Power Front Windows with Driver Express Up/down; Front Frame-Mounted Black Recovery Hooks; 2.7L Turbo Engine; Locking Tailgate; Power Door Locks
• Trailer Camera Package: Advanced Trailering System; Bed View Camera
• Bed Protection Package: Rear Wheelhouse Liners; Chevytec Spray-On Black Bedliner
• Heavy-Duty Rear Locking Differential
• Trailering Package
• 18" X 8.5" Bright Silver Painted Aluminum Wheels
• Integrated Trailer Brake Controller
• Front Black Bowtie Emblem
• Trailer Tire Pressure Monitor Sensors
• Apple CarPlay/Android Auto smart device mirroring
• 4G LTE Wi-Fi Hotspot capable mobile hotspot internet access
• Brake assist system
• Cruise control with steering wheel mounted controls
• Keyfob remote start
• Heated steering wheel
• Heated driver and front passenger seats
• Leather front seat upholstery
• Primary monitor touchscreen
• Rear collision warning
• Autotrac part-time 4WD
• EcoTec3 5.3L V-8 gasoline direct injection
• variable valve control
• regular unleaded
• engine with cylinder deactivation and 355HP
• EcoTec3 5.3L V-8
• Teen Driver restricted driving mode/alerts
• Keyless Open/Keyless Start with hands-free access and push button start
• Push-button
• Bluetooth® wireless audio streaming
• Hitch Guidance vehicle to trailer hitching assist
• Pickup box camera
• Lane Change Alert with Side Blind Zone Alert blind spot warning
• Trailer tire pressure and temperature sensors
• Trailer light test
• Trailer light malfunction warning
• Trailer theft alarm
• Dual-zone front climate control
• Immobilizer
• Bluetooth® handsfree wireless device connectivity
• Trailer brake controller
• Trailer sway control
• Trailering Assist Guidelines vehicle and trailer reverse assist with visual graphic guidance only
• External memory control
• Pandora internet radio capability
• StabiliTrak w/Proactive Roll Avoidance electronic stability control system with anti-roll
• Hill start assist
• Leather rear seat upholstery
• Rear seat check warning
• UltraSonic front and rear parking sensors
• 1 exterior 120V AC power outlet
• LED daytime running lights
• EZ Lift
• EZ Lower
• Manual rear child safety door locks
• Heated driver and passenger side door mirrors
• Manual tilting steering wheel
• Manual telescopic steering wheel
• Auto stop-start engine
• Capless fuel filler
• Metallic paint
• 18 x 8.5-inch front and rear silver aluminum wheels
• P265/65SR18 AS BSW front and rear tires

• Mileage
• Fuel Economy Est-Combined (MPG): 20
• EPA Fuel Economy Est - City (MPG): 19
• EPA Fuel Economy Est - Hwy (MPG): 22
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 220
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3800
• Gross Axle Wt Rating - Rear (lbs): 4150
• Gross Axle Wt Rating - Rear (lbs): 3800
• Curb Weight - Front (lbs): 2839
• Curb Weight - Rear (lbs): 1976
• Gross Vehicle Weight Rating Cap (lbs): 7000
• Gross Combined Wt Rating (lbs): 16800
• Gross Combined Wt Rating (lbs): 12000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6600
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 660
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 6500
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1625
• Maximum Trailering Capacity (lbs): 11300
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Solid Axle
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 50.0
• Shock Absorber Diameter - Rear (mm): 50.0
• Stabilizer Bar Diameter - Front (in): 1.30
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.5 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
• Tires
• Front Tire Order Code: QBN
• Rear Tire Order Code: QBN
• Spare Tire Order Code: QBR
• Front Tire Size: 255/70R17
• Rear Tire Size: 255/70R17
• Spare Tire Size: 255/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 18 x 8.5
• Front Wheel Size (in): 17 x 8
• Rear Wheel Size (in): 18 x 8.5
• Rear Wheel Size (in): 17 x 8
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: - TBD -
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 46.3
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Box Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 24
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 147.43
• Length, Overall (in): 231.7
• Width, Max w/o mirrors (in): 81.24
• Height, Overall (in): 75.51
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.09
• Ground Clearance, Rear (in): 8.09
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 69.92
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 50.63
• Cargo Box (Area) Height (in): 22.4
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 62.9
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 43.03
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 61.18
• Second Head Room (in): 40.12
• Second Leg Room (in): 43.4
• Second Shoulder Room (in): 65.16
• Second Hip Room (in): 60.24
• Summary

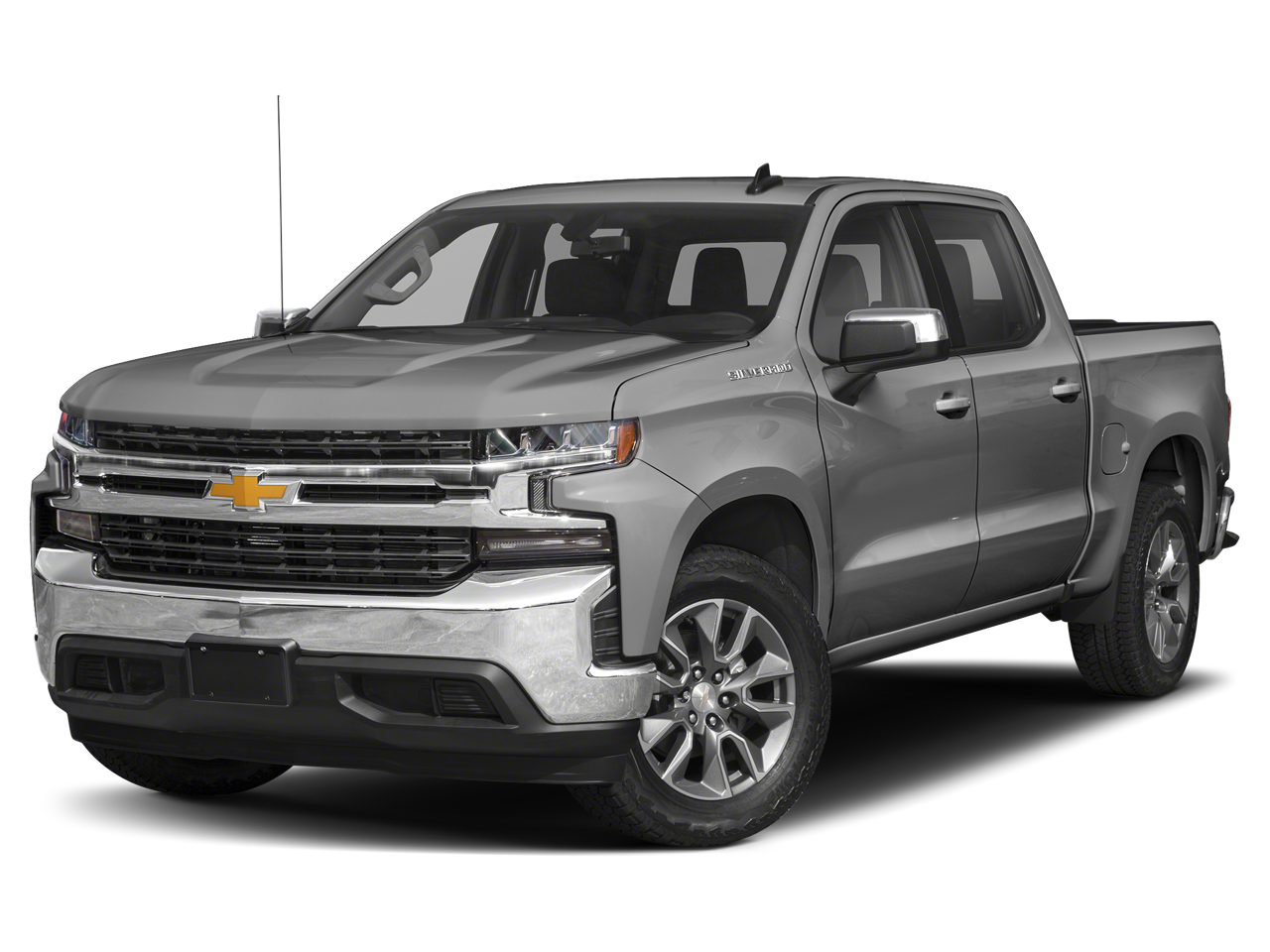

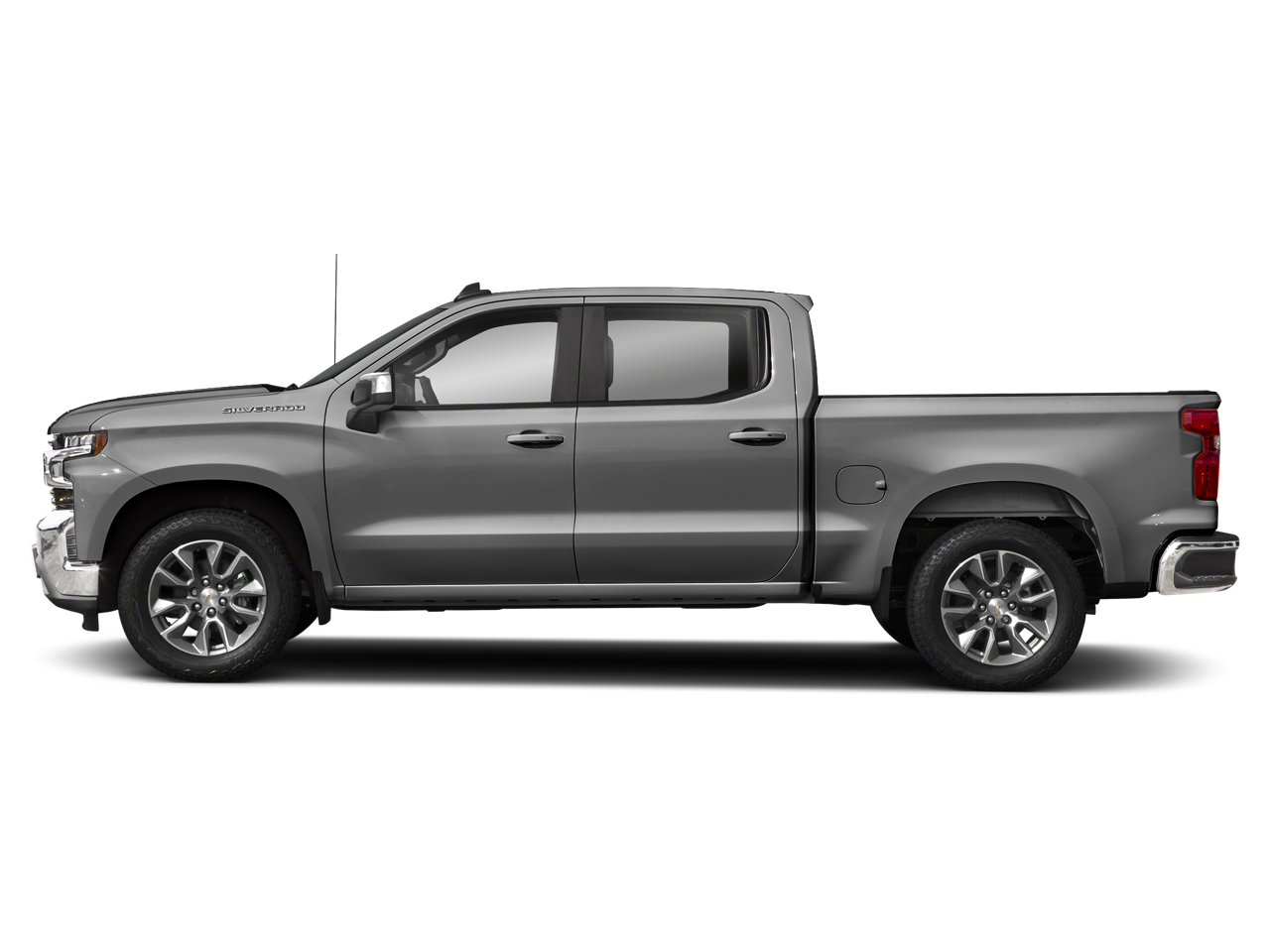

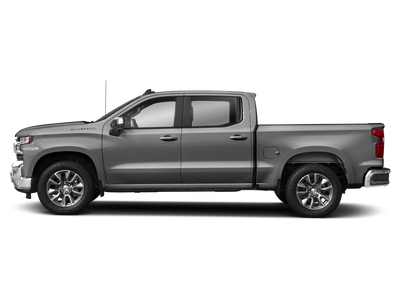

• Vehicle Name: Chevrolet Silverado 1500
• Body Style: Crew Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 8.8
